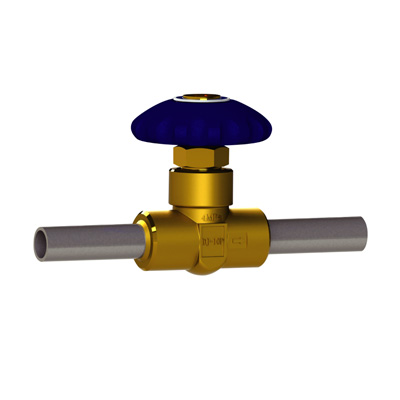

KISA TİP KRİYOJENİK GLOBE VALF (SHORT STEM CRYOGENIC VALVE)
Nominal Pressure: 4.0Mpa
Design Temperature: -196℃～+85℃
Suitable Media: LNG, LO2, LN2, LAr, CO2
Materials of Main Parts:
Body: HPb59-1
Stem: HPb59-1
Handwheel: ZL102
Disc Seals: PCTFE
KISA TİP KRİYOJENİK GLOBE VALF (SHORT STEM CRYOGENIC VALVE)
Paylaş
Telif İste
Kriyojenik Valfler
Kriyojenik Valfler
Type
MAJOR OVERALL & Conecction DIMENSIONS (mm)
D
H
W1
W2
D1
D2
DJ-10P3
Φ70
70
27
118
Φ13
Φ17
DJ-10P5
Φ70
70
55
174
Φ13
Φ17
DJ-10P6
Φ70
70
87
238
Φ13
Φ17
